Steel Couplers
Steel coupler/mechanic splices are responsible for bringing 2 sides of steel, already threaded. They are rotated together by a coupling body, which is stronger than grade steel bar. SD40/SD40T is a fastening medium. The main thing here is the thread. It has greater cross-sectional area than steel, and the material used to produce it is stronger. The force is also comfortable and can shorten the working time while reducing the cost of connection. Up to 40 times more steel than the rebar extension method with a strength certification from the institute test to ensure product quality.
Papatpong Conmat Company Limited is a mechanical steel joint. The parallel spiral system is designed for connecting reinforced steel Ø12 to Ø40 mm.
Advantages
- Does not reduce the size of the cross-sectional area of steel

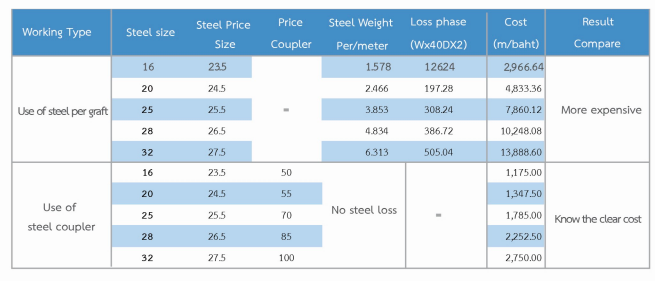

- Reduce losses from steel taping by 40%
- Maximum power output lack at steel when performing tensile tests
- Easy installation - no wrench required
- Type 2 steel joints can be used for seismic areas
- Solve the problem of tight steel
- No need to overlap the joints
- Reduce construction time because steel can be cut as soon as it is fixed
- Reduce the cost of increasing of concrete
Our Products

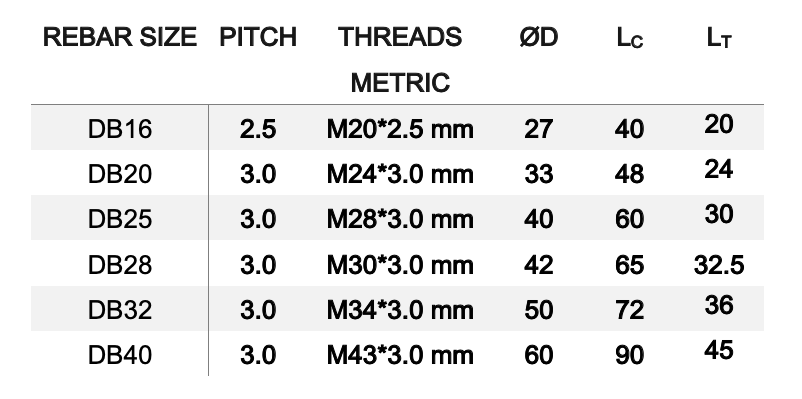

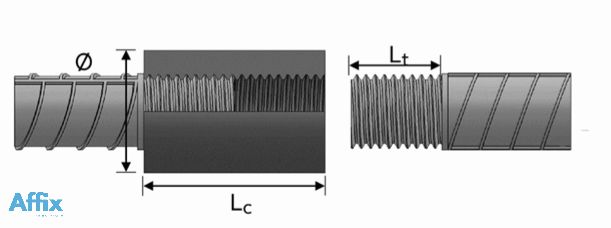

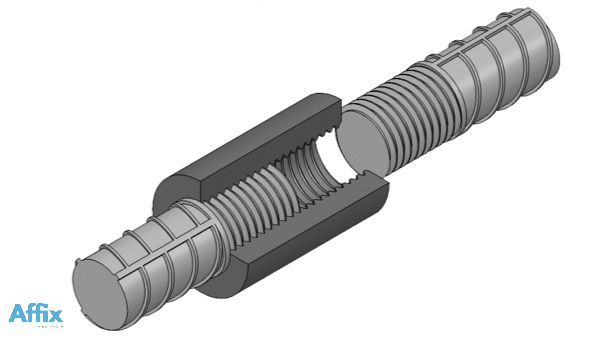

PRODUCTS: TYPE A (Rebar)
PRODUCT DETAILS:

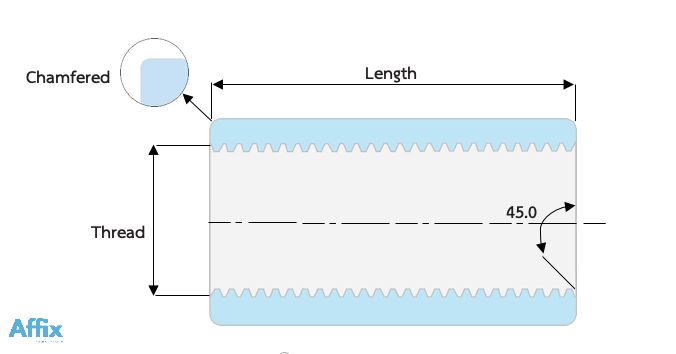

It consists of 2 standard threads. With 1 head using the case, the normal is embedded. Threaded steel with swivel coupler. Then in the concrete structure, then the steel. The other side is threaded and rotated inside. Coupler to the end of the thread.

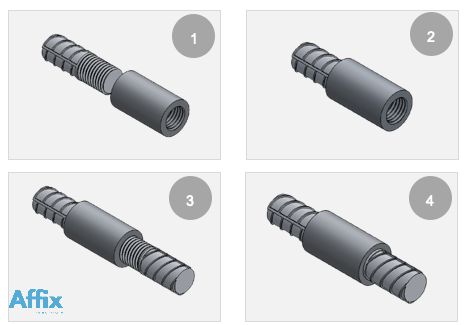

Type A: The steel can be rotated conveniently
- Prepare the finish threaded steel and steel coupler joint
- Bring the spiral steel into the coupler steel joint
- Turn the other standard steel into the coupler steel joint
- Check the integrity after successful installation

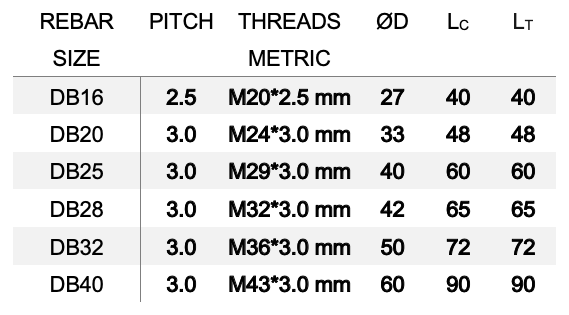

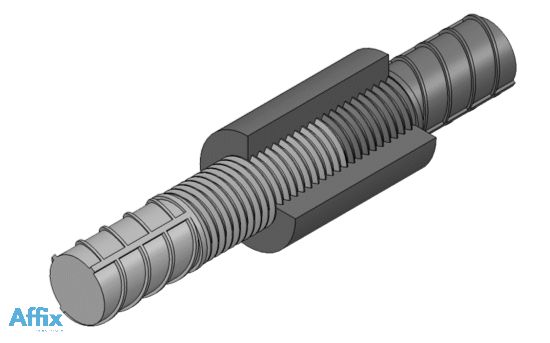

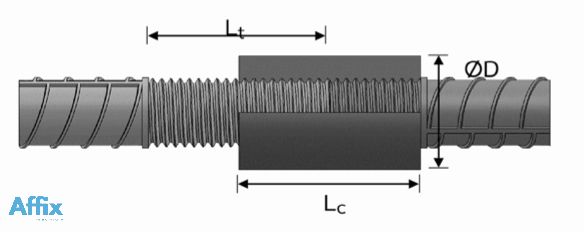

PRODUCTS: TYPE B (Coupler)
PRODUCT DETAILS:
Consists of 1 standard thread with 1 extra long thread and 1 coupler head is used for splicing very long steel. This helps in the matter making it more convenient to splice steel that is embedded in concrete.
Type B: The steel to be attached can be rotated slightly.

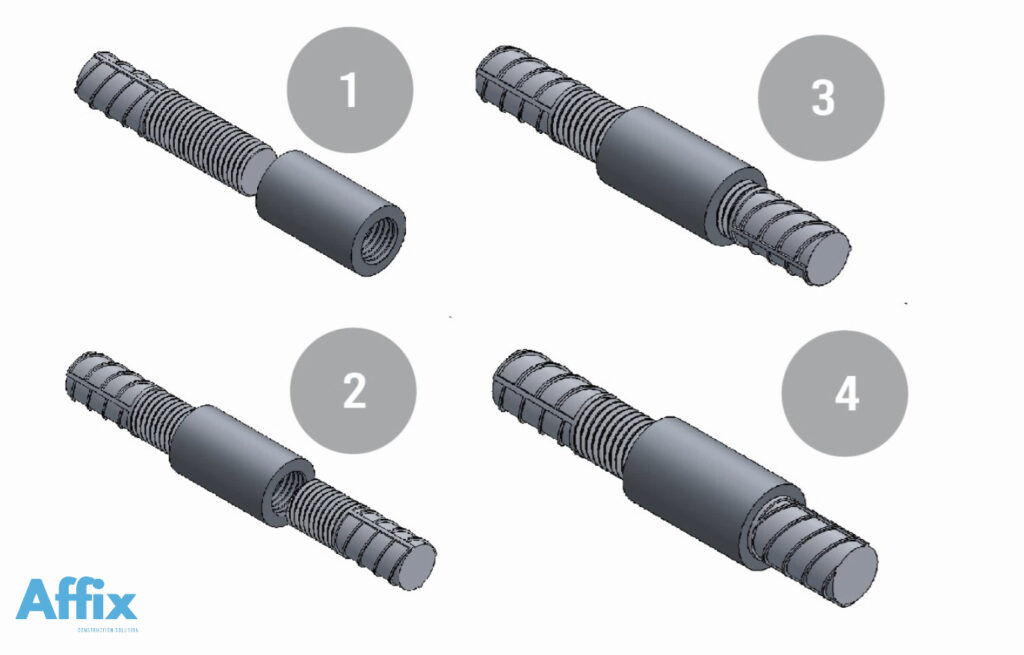

- Prepare the finished threaded steel and steel coupler
- Bring the spiral steel into the steel Coupler
- Check the order after successful
- Rotate the steel thread into the steel Coupler until tight

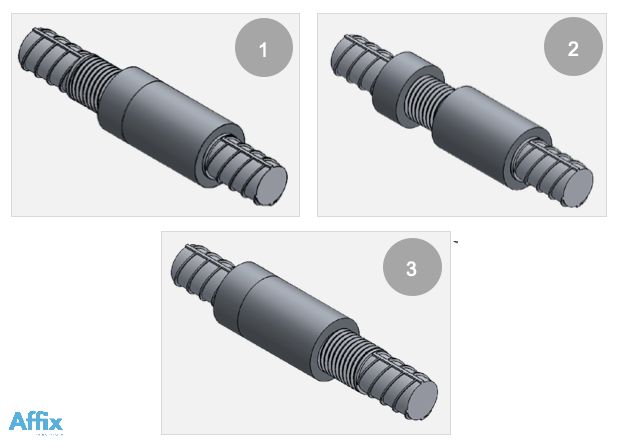

PRODUCTS: TYPE C (Coupler)

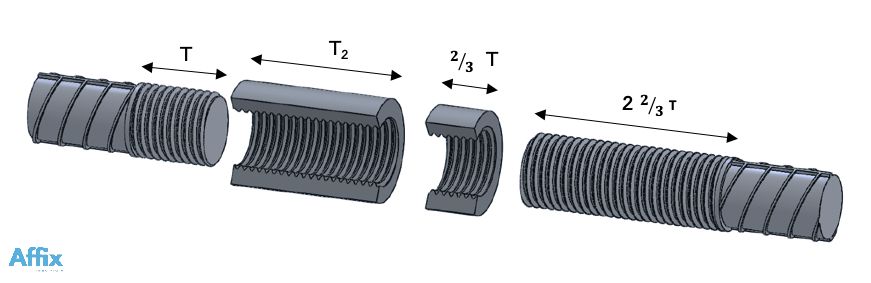

The steel that is attaced cannot be rotated at all. The connection is performed inthe same way as the B connection but with lock nut in the last step to tighten the coupler.

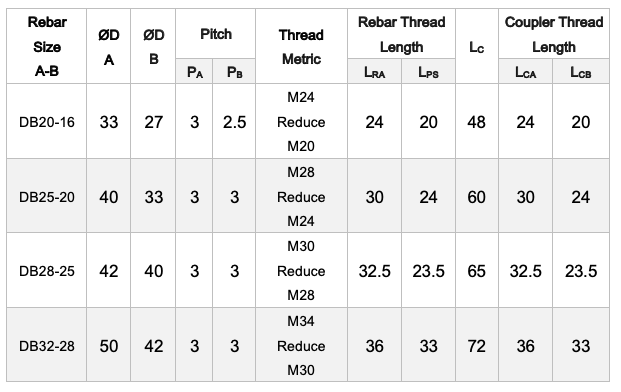

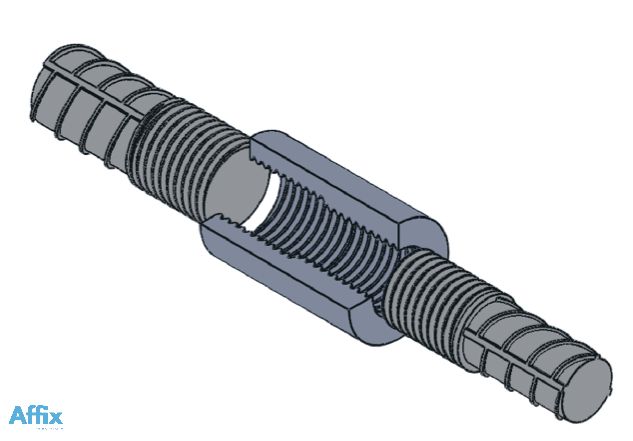

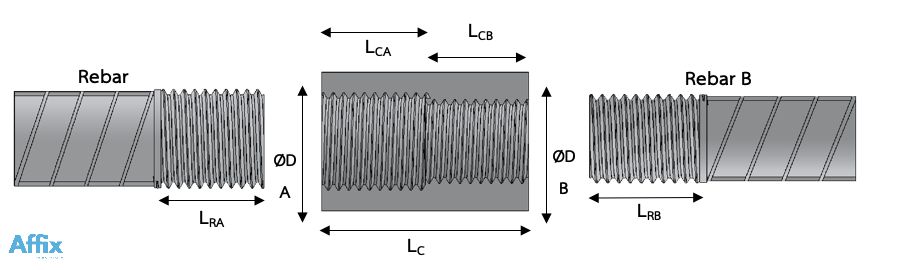

PRODUCT: TYPE D (Reducing size coupler)
It is used for work that requires the extension of construction steel with different sizes such as downsizing DB32 to DB28, which helps simplify planning.
